Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor

LAIZHOU TAIHE CHEMICAL MACHINE CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

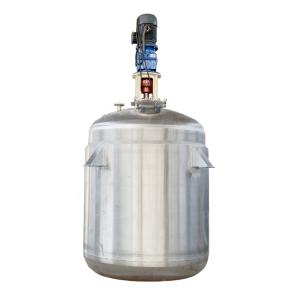

Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor

Place of Origin : Shandong, China

Brand Name : SANWEI

Certification : CE ISO

Packaging Details : Suitable Delivery And Protect The Machine

Supply Ability : 100 Set/Sets per Quarter

Price : $2,650.00/sets >=1 sets

Capacity : 50L-15000L

Automatic Grade : Automatic

Type : Reaction Kettle

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear

Voltage : Customer Required

Power : 0.75kw - 75kw

Dimension(L*W*H) : depend on the model

Weight : depend on the model

Warranty : 1 Year

Key Selling Points : Long Service Life

Applicable Industries : Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other

Showroom Location : None

Product name : Reactor

Material : SS304 ; SS316L ; Carbon steel

Heating method : Electric Heating, Steam Heating, Circulation oil heating etc.

Mixing Type : Anchor, Frame, Paddle etc.

Sealing Type : Mechnical Seal

Keywords : Resin reactor

Working pressure : Ordinary Pressure

Vacuum Degree : -0.098 Mpa

Speed Control : Inverter

Function : Unsaturated polyester resin reactor

After-sales Service Provided : Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : None

Port : QINGDAO

Contact Now

Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor

Unsaturated Polyester Resin Reactor Plant Polyester Resin Equipment Hot Melt Glue Making Machine

1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Model
50L
100L
300L
500L
1000L
2000L
3000L
5000L
Mixing Motor Power
0.75KW
1.1KW
2.2KW
2.2KW
4KW
5.5KW
7.5KW
15-18.5KW
Heating Motor Power
8KW
12KW
24KW
36KW
48KW
60KW
75KW
90KW
Inner Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Jacket Plate Thickness
5mm
5mm
5mm
5mm
6mm
6mm
8mm
8mm
Material
SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.
Heating Type
electric heating, steam heating, oil circulation heating etc.
Agitator
anchor, paddle, frame etc.
Sealing Method
packing seal or mechanical seal (vacuum)
Model
We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
Remarks
We support OEM
More Type
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Electric heating reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Steam Heating Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Limpet Coil Reactor
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Multifunctional Reactor
Project Show Case
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Details Images
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Mirror polished curved head
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
The upper cover of reactor (customizable)
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Anchor agitator
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Paddle agitator
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Cooling coil-pipe in inner cylinder
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
Cooling coil-pipe in inner cylinder
Automatic Chemical Machine Mechnical Seal Resin Kettle Reactor
